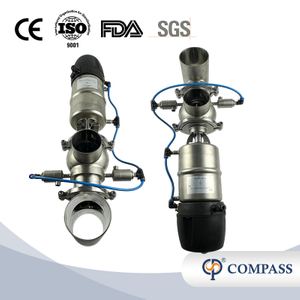

3 inch Sanitary Double Seat Mix proof Valves

Description of commodity: 3 inch Sanitary Double Seat Mix proof Valves

FH01 Series Mix-Proof Valve Characteristics

This valve is used to proof the mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated. While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion of the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position.

FH02 Series Double Seals Mix-Proof Valve Characteristics

The valve is used as the mix-proof separation in the pipe systerm by adopting one valve disc with two seals tech. This valve is the economic choice among the double seat valve. The chamber between the valve disc seals is connected with two drain valve, by which we can detect the seal leakage and clean the chamber.

Material Quality:

• Material contacts parts: SS304 and SS316L

• Sealing material: Standard EPDM, FKM(Viton), Buna.

Surface Treatment:

• External treatment: Sandblasting processing throw the light Ra ≤ 0.6 um

• Internal treatment: Ra ≤ 0.6 um

The advantages Compared with Traditional Design.

• Less components

• Less space

• Easier maintenance

• No dead corner

• No contact between drain systerm and products

• The separation chamber cleaning will do not occur any hydraulic - pressure and not influenced by the equipment or valve status.

Technical Parameter:

• Material Press Range: 0~8bar

• Operative Temperature: -10℃ ~ + 150 ℃

• Operative Air Pressure: 6-8bar

Requirements for Compressed Air Quality that Executor Needs

• Compressed air joint : air pipe equiped with air adapter R1/8"

• Max grain size: 0.01 um

• Max oil content: 0.08 um

• Drew point: blew 10℃ or less

• Max water content: 7.5g/kg

Drawing of Stainless Steel Sanitary High Purity Intelligent Pneumatic Anti-mix Valves

Stainless Steel Sanitary Mix-proof Valves' Operational Principle

CIP Cleaning Type for Sanitary Hygienic Mix Proof Valves

Body Type of Stainless Steel Sanitary Mixproof Valves
